What USP <1058> covers
USP General Chapter <1058> defines a risk-based framework for analytical instrument qualification (AIQ) in regulated laboratory environments. It organizes qualification thinking around four lifecycle phases — DQ, IQ, OQ, and PQ — and groups instruments into three categories (A, B, C) based on complexity and configurability.
The chapter is widely referenced in pharmacopeial labs, CMC release testing, contract analytical labs, and any GMP environment where instruments generate data used for regulatory decisions.
Instrument categories A, B, and C
USP <1058> uses three categories to scale qualification effort to instrument complexity. The categorization should be documented per instrument and revisited if intended use changes.
| Category | Description | Qualification scope | Examples |
|---|---|---|---|
| Group A | Standard equipment with no measurement capability or basic functional indicator. Conformance to specification is verified by visual observation. | Conformity check; no formal qualification protocols required. | Magnetic stirrers, vortex mixers, nitrogen evaporators, basic centrifuges. |
| Group B | Standard instruments and equipment that perform measurement against established specifications. Behavior is dependent on the manufacturer's functional specifications. | IQ and OQ at minimum; PQ if the instrument is used for routine release testing or critical measurement. | Balances, pH meters, thermocouples, ovens, refrigerators, melting-point apparatus. |
| Group C | Computerized analytical instruments with significant configuration and software. Often produce data files used in regulatory decisions. | Full DQ, IQ, OQ, PQ lifecycle. GAMP 5 categorization (typically Cat 4 or Cat 5) of the embedded software is also required. | HPLC, GC, LC-MS, ICP-MS, dissolution apparatus, spectrophotometers with chromatography software. |

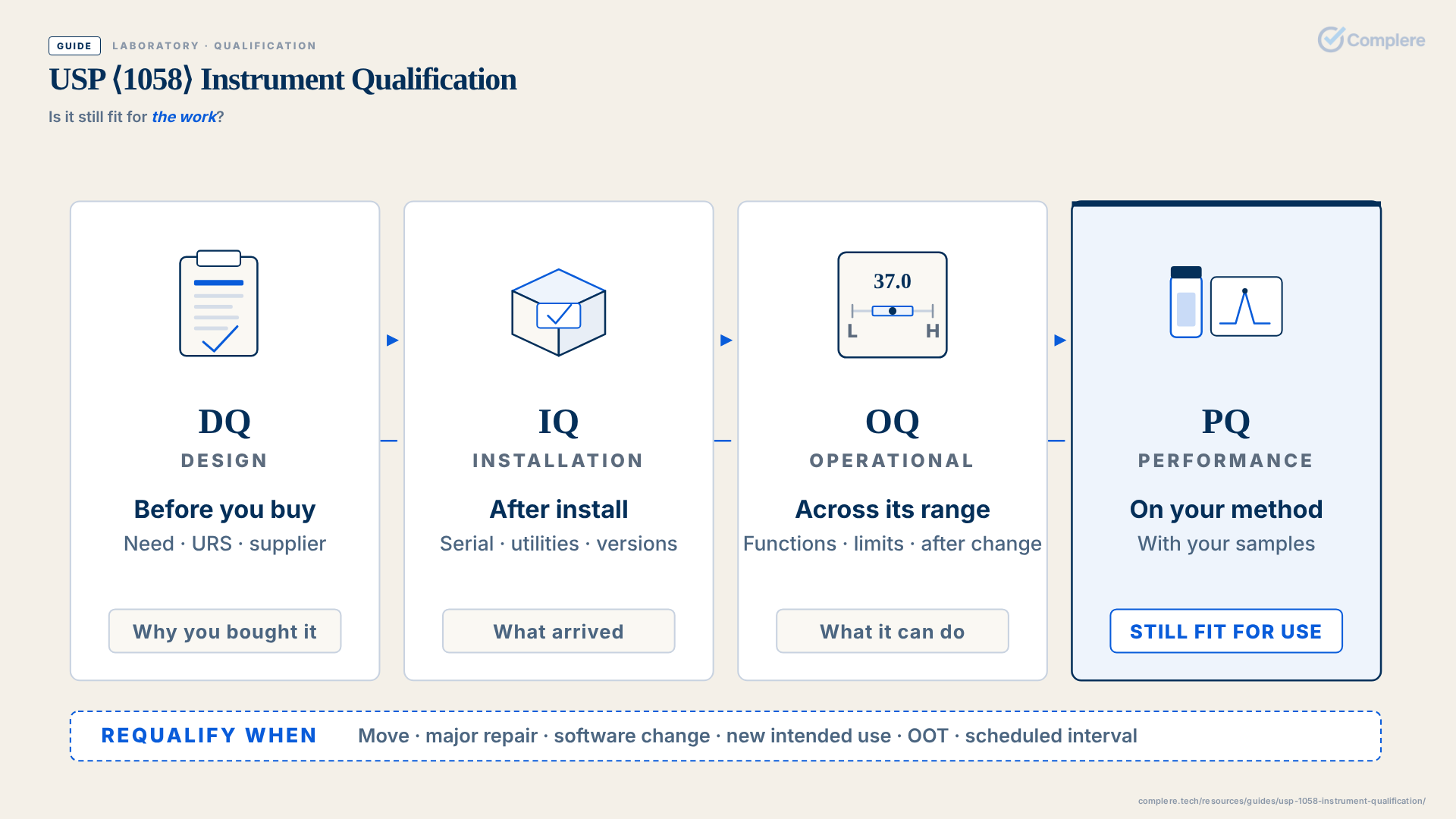

DQ, IQ, OQ, and PQ in practice
The four qualification phases form a lifecycle. Each phase generates evidence that supports the validated use of the instrument over time.
- Design Qualification (DQ). Documents the intended use, user requirements, regulatory expectations, and supplier assessment before purchase. The DQ ties instrument selection to the specific tests, methods, and decisions the instrument will support.
- Installation Qualification (IQ). Confirms the instrument is delivered, installed, and configured per specification in the intended environment. Captures serial numbers, software versions, utilities, calibration certificates, and supplier documentation.
- Operational Qualification (OQ). Verifies the instrument operates within the manufacturer's functional specifications across its expected operating range. Performed after installation and after any major change.
- Performance Qualification (PQ). Demonstrates the instrument performs reliably for its intended analytical use, typically using method-specific test mixtures, system-suitability criteria, or process-relevant samples. PQ is repeated at defined intervals as part of ongoing requalification.
Requalification: the triggers that restart the lifecycle
Initial qualification answers "is this instrument fit for use today?" The harder operational question is what re-opens that answer. These are the events that should trigger a documented requalification decision — not automatically a full DQ-to-PQ rerun, but an assessed response scaled to what changed:
| Event | Typical response |
|---|---|
| Relocation — even bench-to-bench for sensitive instruments | Re-verify installation and environment (IQ elements); OQ where transport could affect function — balances and chromatography systems are the classic cases. |
| Major repair or replacement of a measuring component | Targeted OQ on the affected functions; PQ or system suitability before the instrument returns to release testing. |
| Software or firmware upgrade | Change control with a validation impact assessment; OQ on affected functions; where data handling changed, verify audit trail and data integrity behavior. |
| Change of intended use or a new method | Revisit the DQ and the A/B/C categorization — an instrument qualified for one use is not automatically qualified for another. PQ against the new method's requirements. |
| Out-of-tolerance calibration result | Deviation with an impact assessment on results generated since the last passing check. This is the point where qualification records meet OOS investigations. |
| Scheduled interval reached | Periodic requalification or PQ per the instrument's plan, with the frequency justified by risk and usage — not a one-size calendar. |
The regulated user does — always. A vendor engineer can execute the IQ/OQ protocols, and often should, but the acceptance decision, the review, and the records belong to the lab's quality system. "The service engineer said it passed" is not a qualification record; the signed, reviewed protocol in your document control is.
Why this matters to quality-system teams
Instrument qualification is rarely isolated from the rest of the quality system. A failed PQ can trigger an OOS investigation. A configuration change to an HPLC data system can trigger document control, training, and validation impact assessment. A supplier issue can become a CAPA.
Treating qualification records as part of the same governed evidence stream reduces inspection rework when investigators ask for the full history of an instrument, a method, or a result.
Where eQMS workflows support the process
An eQMS does not replace lab equipment qualification, but it can govern the records, approvals, and follow-up that surround the qualification lifecycle:
- Document control for DQ, IQ, OQ, and PQ protocols and reports.
- Training records for instrument operators and reviewers.
- Change control linking software upgrades or configuration changes to revalidation impact.
- Deviation and CAPA workflows when qualification or system suitability fails.
- Periodic review and requalification scheduling.
Cross-reference with the GAMP 5 categories guide when the instrument's embedded software needs computerized-system validation alongside the hardware AIQ.
